Dex2 M Series

​  Product Features

  • Optimal welding programs in LSA (low-spatter-arc welding realized by software algorithm), quick pulse, high-speed weld and others. Be weldable in multiple materials: carbon steel, stainless steel, aluminum alloy and others;

  • "Chopper" control technology is applied in software to precisely control droplet, and reduce spatter by more than 50%;

  • Unique quick pulse process integrates advantages of pulse and DC short circuit, and welding speed is increased by more than 20% compared with conventional pulse welding;

  • Wider voltage range, high current and low voltage, lower heat input, higher fusion efficiency, thin plate welding is comparable to TAP-TYPE machine;

  • Adaptive arc-start retraction technology increases arc start success rate to almost 100%;

  • Inverter frequency up to 110KHz enables higher control precision and more stable arc;

  • Comprehensive communication interfaces are able to communicate with different brands of robots;

  • Built-in touch sensing function with 80-400 voltage is easier to break down the rust on the surface of workpiece;

  • Acting national standard of first-level energy efficiency;

  • IOT interface is reserved to connect with Megmeet SMARC cloud system;

  • U-disk upgrade function ensures customers to easily obtain Megmeet's most cutting-edge welding technology;

  • Application industries: engineering machinery, steel structures, special vehicles, auto parts, two/tricycles, containers, petroleum and petrochemical industries, etc.

Super-low Spatter Technology

110kHz high-frequency hardware system combined with patented algorithm can realize precise "chopper" control, which greatly reduces spatter caused by liquid-bridge bursting and electromagnetic repulsion, and helps fusion pool more stable and weld shape more beautiful.

Welding Features:

  • Soft arc, low and small spatter, 90% less spatter than conventional DC welding machine. Grinding work is reduced to improve production efficiency;

  • Lower heat input, suitable for thin plate welding; Smooth droplet transfer, calm fusion pool, low heat input, strong ability in bridge-welding, be adaptive in large-gap welding;

  • Wider range in low spatter welding: thin-plate carbon steel, $1.2mm wire. Low spatter current range can reach 210A, 20% higher than other similar welding machines

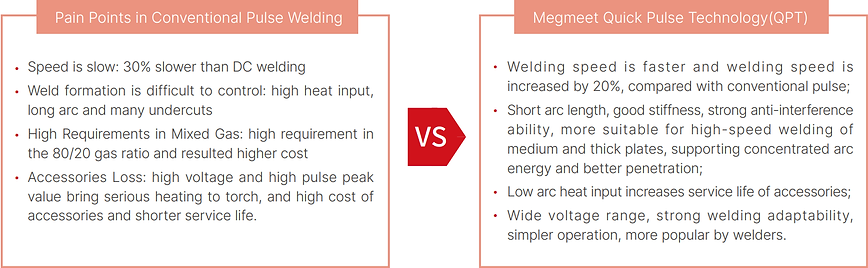

Quick Pulse Technology(QPT)

Unique quick pulse welding technology adopts three-level main power topology. High-speed sampling and control advantages, brought by the inverter frequency up to 110kHz, can reach critical state between short circuit and pulse spray transition. With shorter droplet transition distance, lower arc and faster welding speed, pulse speed is increased by more than 20%. Service life of wearing parts is lengthened and weld shape is better, meeting actual needs of manual welding.

High Speed DC Welding

  • With wider adaptive range of voltage, the same current is able to match lower voltage (10% lower than other welding machines);

  • Lower heat input, higher deposition efficiency, thin-plate welding performance be comparable with tap-type machine.

Wire Retraction Function in Arc Starting

  • When welding machine detects arc starting signal, wire will retract in high speed, which greatly improves the quality and success rate of arc starting, and greatly reduces various arc staring issues.

Up-down Torch (optional)

  • Up-down torch is optional to conveniently adjust welding parameters on the torch(current, voltage, etc).

High Reliability

Strong environmental adaptability, suitable for working under tough environment;

Stable and reliable: stability is the base of intelligent welding machines !

Consistency: consistent performance by any machine, anytime and anywhere !
