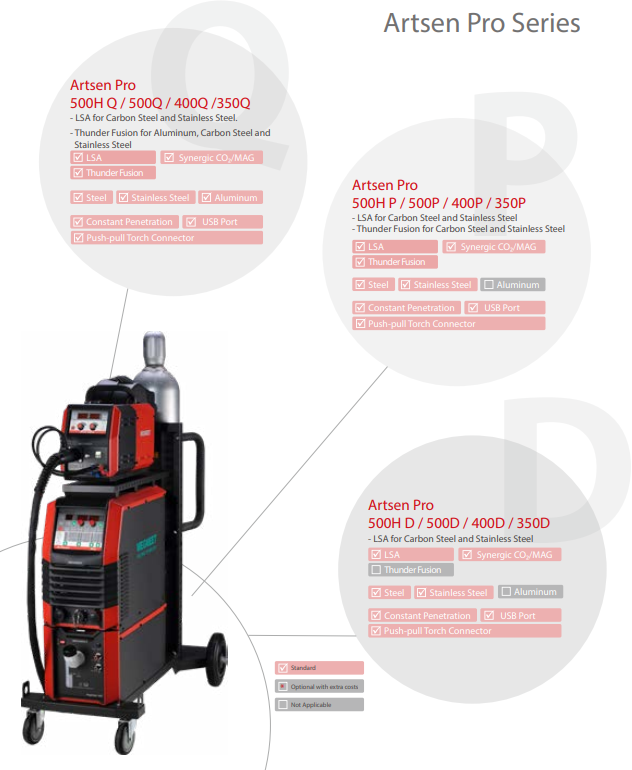

Artsen Pro Series

​  Product Features

  • ​Artsen Pro series was developed on the basis of the Artsen Plus series. It has meet the demand of high effciency welding, especially for thick plates.

  • Power source of 500A 100% is available for Artsen Pro series.

  • With inverter technology of frequency as high as 100K HZ and high-speed sampling, Artsen Pro achieves precise control, and is flexible with various welding characteristics.

  • Artsen Pro series brings LSA, a featured low-spatter welding process, as standard. Thunder Fusion is also available with Artsen Pro for the advanced short-arc pulse and double pulse MIG/MAG.

  • Artsen Pro series meets high quality welding of carbon steel, stainless steel and aluminum alloys.

  • Equipped with Constant Fusion, which allows wire-feeding speed at pulse mode to change automatically according to the stick-out length, and keeps the penetration stabilized.

  • Capable to work with multiple industrial robots thru multiple robotic protocols.

  • Anti-interference capability, especially convenient for welding automation of multiple torches.

  • Equipped with USB port for upgrading, ensuring access to the most advanced welding process developed by MEGMEET and the most suitable welding software to face different welding conditions.

  • Artsen Pro brings various wire-feeders to meet different welding applications at different markets of different budget levels.

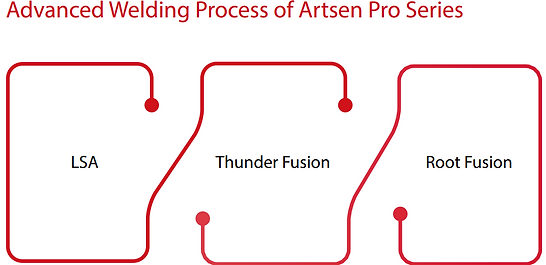

Thunder Fusion (Short Arc Pulse Welding)

Shot-circuit transfer was added into waveform of the standard pulse process. It is a superb combination of synergic and pulse welding process together with their advantages, and achieving better results with short welding arc.

Features in Welding Process:

  • Welding with lowered voltage to achieve spatter-free and beautiful results with pulse process

  • Short in transfer arc, higher in transfer frequency, stronger in anti-interference capability

  • More friendly to robotic welding with high arc stiffness and sharp arc direction

  • Heat-input lowered to avoid defects like under-cut

  • Deposition rate increased

  • Welding spatter is eliminated. Welding process becomes well controlled

LSA (Low-spatter Arc for MAG / CO2)

Optimized and upgraded on the basis of standard synergic MIG/MAG, through software-based precise control, the molten droplet of short-circuit transfer is softly disconnected, so that the spatter caused by the traditional liquid bridge explosion and electromagnetic repulsion is reduced. The molten pool is calmer, and the weld formation is more beautiful.

Process Characteristics:

  • Accurate in software control for high-frequency short-circuit transfer. Lower in spatter. Lower in heat input. Highly suitable for sheet metal welding

  • Soft in welding arc and fine with spatter particles. Less spatter to remain on the workpiece. Lower with rework like grinding after welding. Higher in total working effciency

  • Higher in welding speed. Better in deformation control. More helpful in welding quality

Consistant Fusion

When the base material is uneven and the stick-out length changes, the power-source automatically adjust instantly the wire-feeding speed, and prevent the melting depth from being affected by the changing stick-out length. Welding quality is therefore improved

​

Process Characteristics:​

  • The welding arc has high dynamic characteristics and stability, stable penetration, and high quality

  • Suitable for automated welding by robots and special machines

​

USB Port

It benefits welders by ensuing fast access to the latest or any tailor-made welding process by MEGMEET. Welding process could be shared and down-loaded from online into a USB, and used thru the port for upgrading
